SunTera Utility System

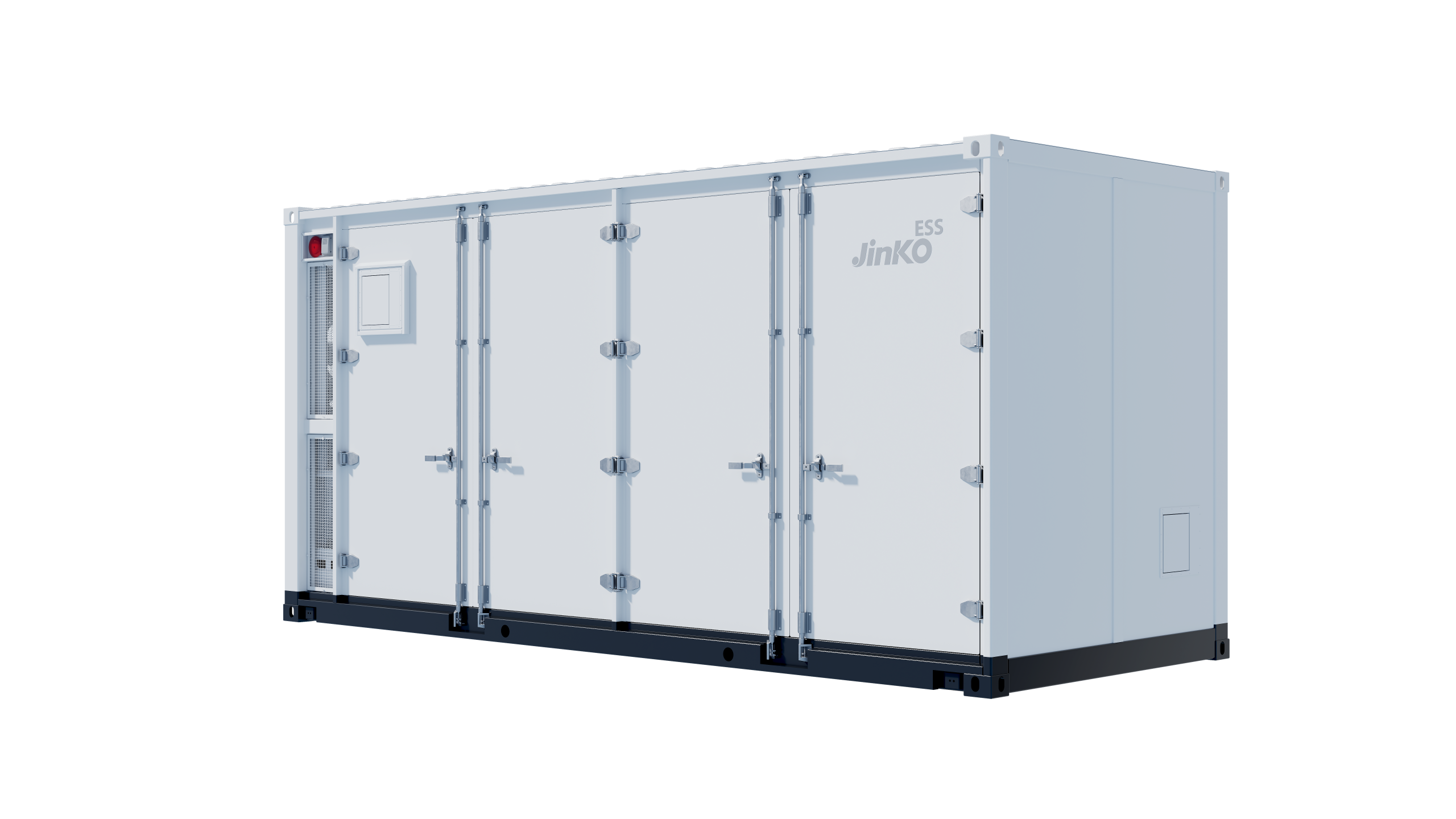

SunTera G3 6.26MWh Energy Storage System

Product Features

Intelligent Liquid Cooling for Thermal Stability
Enhanced System Efficiency
Comprehensive Safety Architecture
Smart O&M & Flexible
Ideal Application:
Solar-Storage Integration
Grid Support Services
Energy Market Participation

Specifications

Battery parameters

Type of cell
Lithium Iron Phosphate(LFP)
Cell specification
3.2V/588Ah
Charge/discharge power
0.5P/0.25P
Configuration of system
1P416S×8
Rated capacity
6.25 MWh
Rated voltage
1331.2V

System parameters

Dimension(L×W×H)
6058×2438×2896mm
Weight
48,000 kg
Cooling method
Liquid Cooling
Operating temperature
-40~55℃
Operating humidity
≤100%RH
Altitude
＜4500m
Noise level
≤80dB(A), @1m/ 75dB(optional)
IP grade
IP55
Corrosion class
C4/ (C5 optional)
Fire suppression system
Temperature sensor + Smoke detector + Combustible gas detector + Deflagrationventing（Optional）+Aerosol+Watersprinkler
Communication
Ethernet / CAN
Certification Standards
IEC62619, IEC61000, IEC62477, UL9540A, UL1973, UL9540, NFPA68, NFPA69, NFPA855

Downloads

SunTera 6.25MWH
